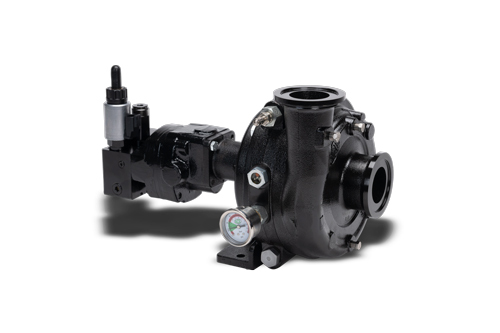

Hydraulic Driven Centrifugal Pumps | Pro5 Series
General Advantages
Ace developed the first hydraulic motor driven pump at the request of John Deere in 1969. Many of the original pumps are still operating today after more than 30 years of service.
Centrifugal pump design provides good resistance to abrasive solutions and extra flow for agitation. The advantages of the hydraulic motor driven pump are mounting versatility, customized performance, and ease of maintenance. All hydraulic driven pumps are equipped with a stainless steel shaft and wear ring for excellent corrosion resistance.
- MOUNTING VERSATILITY: The location of the pump is not tied to the PTO or engine drive shaft; the pump can be mounted in a variety of locations to suit application requirements.
- CUSTOMIZED PERFORMANCE: The performance is dependent on the supply of hydraulic oil to the motor and not necessarily tied to engine speed. A hydraulic driven pump can produce higher pressures than PTO or belt driven pumps. They can also hold constant pressure at varying engine speeds on closed center hydraulic systems.
- EASY MAINTENANCE: On a hydraulic driven pump there are no belts to align or break. Separate pump and hydraulic motor shafts simplify repair and replacement. Two main pump bearings support shaft loads. All pumps are equipped with easily replaceable FKM mechanical seals.
The Ace gear type hydraulic motor is more efficient than gerotor type motors, and is less subject to damage by contamination than the gerotor design. A built-in needle valve allows for the bypass of up to 9 GPM excess hydraulic fluid on open center systems. The standard motor has a reverse flow check valve which prevents backward hookup and a coasting check which protects the motor seal from the flywheel effect of the impeller. A restrictor orifice is included with pump models recommended for pressure compensating closed center systems. The Ace Internet Hydraulic Selection Guide is here to help in finding the proper hydraulic pump for your tractor.
FMCSC-125-HYD-204 | FMCSC-125-HYD-206 | FMCSC-125-HYD-206-PWM
| SUCTION | DISCHARGE |
|---|---|
| 1-1/4 NPT | 1 NPT |
- E-Coated cast iron housings for added corrosion resistance
- Larger bearings provide longer life
- Severe duty silicon carbide seal standard - resists abrasive scratching and transfers heat away from seal faces for improved survival during short run-dry events
- The 204 motor requires 4 GPM(15.1 LPM) maximum hydraulic fluid input. Recommended for:
- Pressure Compensating Closed Center Systems
- Open Center Systems up to 13 GPM (49.2 LPM) using internal needle valve bypass.
- The 206 motor requires 7 GPM (26.5 LPM) maximum hydraulic fluid input and fits virtually all tractor hydraulic systems. Recommended for:
- Pressure Compensating Closed Center Systems
- Load Sensing Closed Center Systems
- Open Center Systems up to 16 GPM (60.6 LPM) using internal needle valve bypass
FMCWS-125-HYD-204 | FMCWS-125-HYD-206 | FMCWS-125-HYD-206-PWM
| SUCTION | DISCHARGE |
|---|---|
| 1-1/4 NPT | 1 NPT |
- E-Coated cast iron housings for added corrosion resistance
- Larger bearings provide longer life
- Ace Pump's exclusive Oasis WetSeal Technology
- Optional motor with integrated PWM (pulse width modulated) motor for precision applications
- The 204 motor requires 4 GPM(15.1 LPM) maximum hydraulic fluid input.
- Pressure Compensating Closed Center Systems
- Open Center Systems up to 13 GPM (49.2 LPM) using internal needle valve bypass.
- The 206 motor requires 7 GPM (26.5 LPM) maximum hydraulic fluid input and fits virtually all tractor hydraulic systems.
- Pressure Compensating Closed Center Systems
- Load Sensing Closed Center Systems
- Open Center Systems up to 16 GPM (60.6 LPM) using internal needle valve bypass
FMCSC-155F-HYD-206 | FMCSC-155F-HYD-304 | FMCSC-155F-HYD-206-PWM | FMCSC-155F-HYD-304-PWM
| SUCTION | DISCHARGE |
|---|---|
| 220 Flange | 200 Flange |
| 1-1/2 NPT | 1-1/4 NPT |
- E-Coated cast iron housings for added corrosion resistance
- Larger bearings provide longer life
- Severe duty silicon carbide seal standard - resists abrasive scratching and transfers heat away from seal faces for improved survival during short run-dry events
- Optional motor with integrated PWM (pulse width modulated) motor for precision applications
- The 206 motor requires 7 GPM (26.5 LPM) maximum hydraulic fluid input and fits virtually all tractor hydraulic systems.
- Pressure Compensating Closed Center Systems
- Load Sensing Closed Center Systems
- Open Center Systems up to 16 GPM (60.6 LPM) using internal needle valve bypass
- The 304 motor requires 11 GPM (41.6 LPM) maximum hydraulic fluid input.
Recommended for:
- Pressure Compensating Closed Center Systems
- Load Sensing Closed Center Systems
- Open Center Systems up to 20 GPM (75.7 LPM) using internal needle valve bypass
FMCWS-155F-HYD-206 | FMCWS-155F-HYD-304 | FMCWS-155F-HYD-206-PWM | FMCWS-155F-HYD-304-PWM
| SUCTION | DISCHARGE |
|---|---|
| 220 Flange | 200 Flange |
| 1-1/2 NPT | 1-1/4 NPT |
- E-Coated cast iron housings for added corrosion resistance
- Larger bearings provide longer life
- Ace Pump’s exclusive Oasis WetSeal Technology
- Optional motor with integrated PWM (pulse width modulated) motor for precision applications
- The 206 motor requires 7 GPM (26.5 LPM) maximum hydraulic fluid input and fits virtually all tractor hydraulic systems.
- Pressure Compensating Closed Center Systems
- Load Sensing Closed Center Systems
- Open Center Systems up to 16 GPM (60.6 LPM) using internal needle valve bypass
- The 304 motor requires 11 GPM (41.6 LPM) maximum hydraulic fluid input. Recommended for:
- Pressure Compensating Closed Center Systems
- Load Sensing Closed Center Systems
- Open Center Systems up to 20 GPM (75.7 LPM) using internal needle valve bypass
