Products

Roller Pumps

General Advantages

With a compact, low cost design, the Ace roller pump offers quality construction with a proven design for a large range of spraying, cleaning, and transfer applications. Whether used for low volume, moderate pressure applications such as field or row crops, or for spot spraying around storage bins and fence rows, the Ace roller pump delivers sufficient pressure for reaching the top of orchard trees or penetrating livestock hair.

Standard features include:

  • Cast series features cast-iron construction
  • Platinum series cast alloy provides additional protection from aggressive chemical and fertilizers
  • Thermoplastic with metal core rollers allow for applying products up to 140°F (60°C)
  • FKM lip type seals
  • Sealed bearings for longer life

RP-600C | RP-600C-R Six Roller Cast Series

RP-600C | RP-600C-R Six Roller Cast Series
SUCTION DISCHARGE
3/4 NPT 3/4 NPT
  • Maximum Flow = 21.8 GPM (82.5 LPM)
  • Maximum Pressure = 300 PSI (20.7 BAR)
  • Speeds from 540 to 1200 RPM
  • 5/8" Stainless Steel Shaft
  • Counter-Clockwise rotation standard
  • “-R” clockwise rotation available
  • Bulk packaged option available for manufacturers

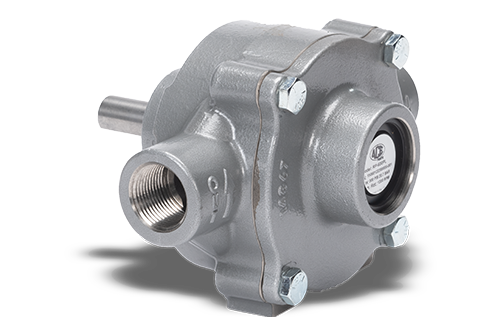

RP-600PL | RP-600PL-R Six Roller Platinum Series

RP-600PL | RP-600PL-R Six Roller Platinum Series
SUCTION DISCHARGE
3/4 NPT 3/4 NPT
  • Platinum series cast alloy provides additional protection from aggressive chemicals and fertilizers.
  • Maximum Flow = 21.8 GPM (82.5 LPM)
  • Maximum Pressure = 300 PSI (20.7 BAR)
  • Speeds from 540 to 1200 RPM
  • 5/8" Stainless Steel Shaft
  • Counter-Clockwise rotation standard
  • “-R” clockwise rotation available for gas engine mounting
  • Bulk packaged option available for manufacturers



Roller Pump Accessories

Multispeed die-cast quick coupler that fits 6-spline (540 RPM) and 21-spline (1,000 RPM) tractor PTOs for 5/8" or 15/16" shaft

Base plate for mounting -R version roller pumps to gas engine

Torque Bar Kit

RP-800C | RP-800C-R Eight Roller Cast Series

RP-800C | RP-800C-R Eight Roller Cast Series
SUCTION DISCHARGE
3/4 NPT 3/4 NPT
  • Maximum Flow = 22.5 GPM (85.2 LPM)
  • Maximum Pressure = 300 PSI (20.7 BAR)
  • Speeds from 540 to 1000 RPM
  • 15/16" Stainless Steel Shaft
  • Counter-Clockwise rotation standard
  • “-R” clockwise rotation available
  • Bulk packaged option available for manufacturers

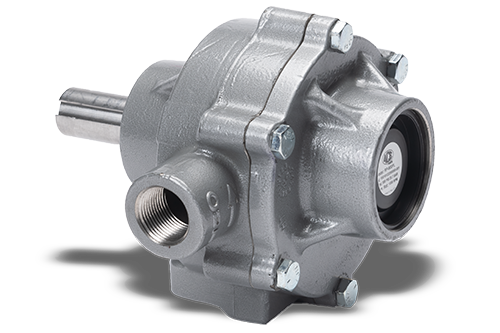

RP-800PL | RP-800PL-R Eight Roller Platinum Series

RP-800PL | RP-800PL-R Eight Roller Platinum Series
SUCTION DISCHARGE
3/4 NPT 3/4 NPT
  • Platinum series cast alloy provides additional protection from aggressive chemicals and fertilizers.
  • Maximum Flow = 22.5 GPM (85.2 LPM)
  • Maximum Pressure = 300 PSI (20.7 BAR)
  • Speeds from 540 to 1000 RPM
  • 15/16" Stainless Steel Shaft
  • Counter-Clockwise rotation standard
  • “-R” clockwise rotation available
  • Bulk packaged option available for manufacturers
