What's New

New Polypropylene Centrifugal Pump

FMC-75-HYD-204 FMC-75-HYD-206

Replace 12V diaphragm pumps and roller pumps with this reliable new polypropylene model designed for starter fertilizer and small sprayer applications. The FMC-75-HYD combines the convenience and serviceability of Ace hydraulic driven pumps with the corrosion resistance of a polypropylene wet end. The performance is ideal for low flow rate in-furrow chemical applications without the excess flow and heat of larger pumps.

Click here to download product information. (900kb PDF)

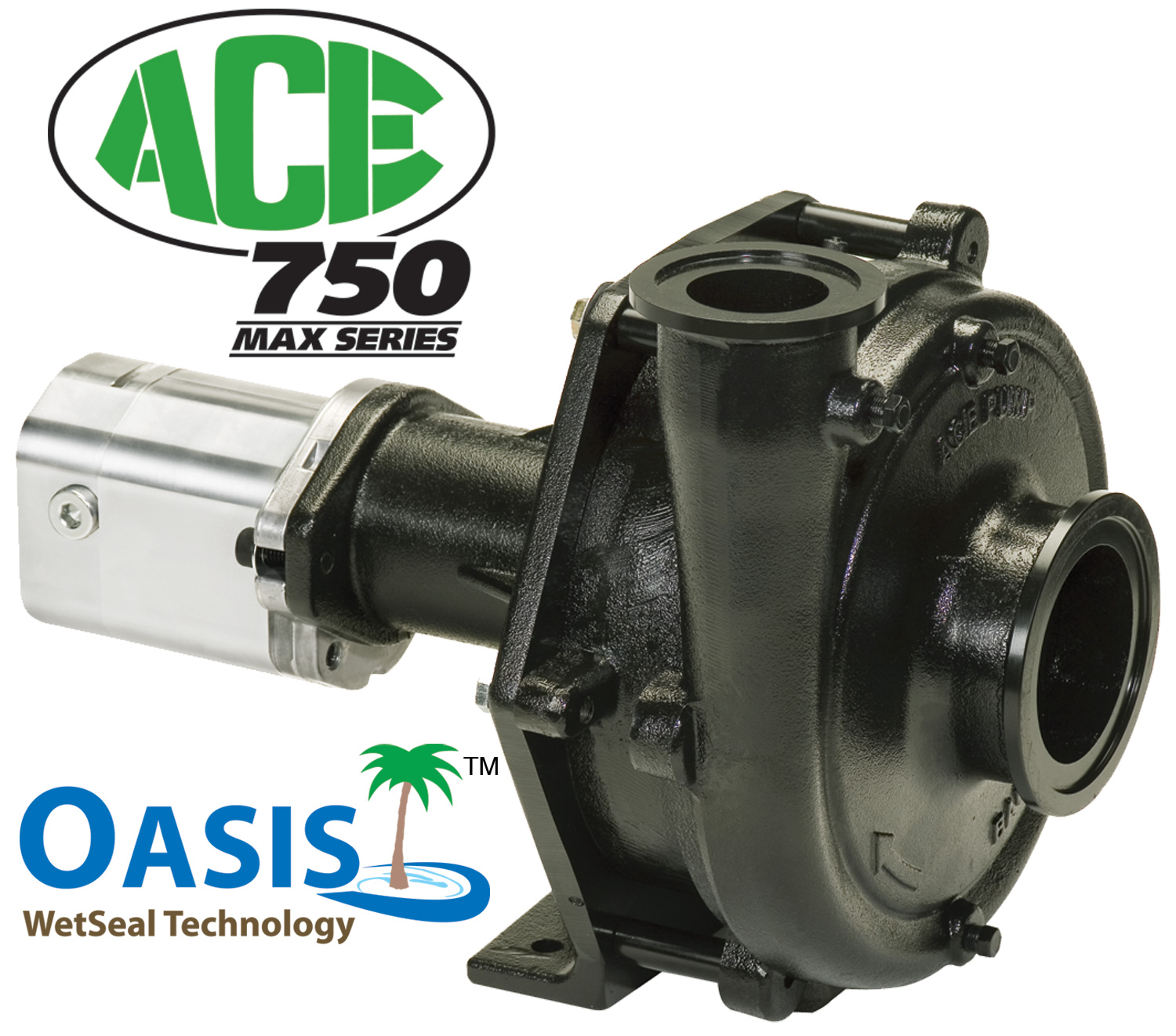

New 750 MAX with Oasis™ WetSeal Technology

FMC-750F-HYD

The new Ace 750 MAX Series pump brings the ultimate in reliability and performance to the sprayer market. Downtime is unacceptable to applicators now more than ever. Oasis™ WetSeal Technology prevents run dry and abrasive seal failures which result in lost opportunity, time, and income. Oversized bearings, e-coated castings, a 4000 psi hydraulic motor, and slower operating speeds also contribute to the exceptional reliability. A maximum pressure of 150 psi and a maximum flow of 290 gpm satisfy today's most demanding application requirements.

Click here to download product information. (420kb PDF)

Gas Engine Drive Centrifugal Pump

GE-75 and GE-85

These economical new GE models are ideal for small sprayer applications.  The unique tall blade impeller design delivers higher pressures at standard engine speeds.  The performance bridges a void in the market between small 12V diaphragm pumps and larger centrifugals.  A top flow of 24 gpm and maximum pressure of 65 psi makes them perfect for a variety of applications including:  estate sprayers, turf sprayers, ATV sprayers, liquid deicing applicators, pest control units …
The pump is constructed of light weight, corrosion resistant polypropylene and attaches directly to the engine shaft.

• The GE-75 is for use on 2.5 to 3 HP engines with a 5/8” keyed shaft.
• The GE-85 is for use on 5 to 5.5 HP engines with a ¾” keyed shaft.

Click here to download product information. (380kb PDF)

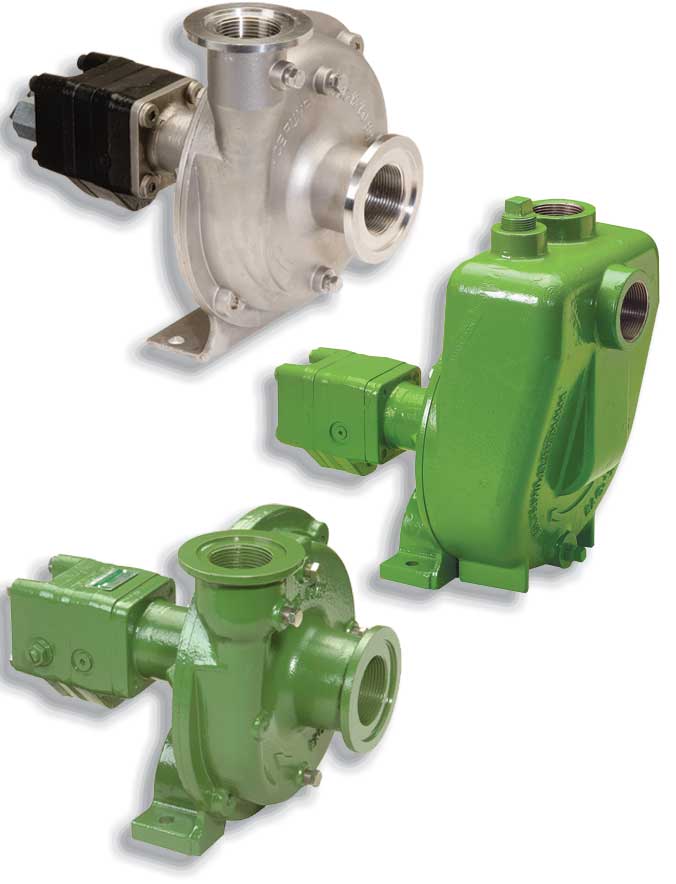

New Options for Popular 150 Series

FMC-150F, FMC-150FS, and FMC-150SP

Our most popular 150 Series has some new members:

• FMC-150F Models – These models are equipped with both NPT and flanged plumbing connections.These high performance flanges mate with industry standard fittings for flexible, leak proof sprayer component connections.
• FMC-150FS Models –This model combines the superior performance of the 150 pump with the corrosion resistance of 316 stainless steel.It is equipped with NPT and flanged plumbing connections.
• FMC-150SP Models – These models are self-priming making them ideal for load and spray applications.

The three pump housings are interchangeable with other 150 series pumps in the market.  You can easily order a new housing and convert your existing pump to one of these models.

Click here to download product information. (220kb PDF)

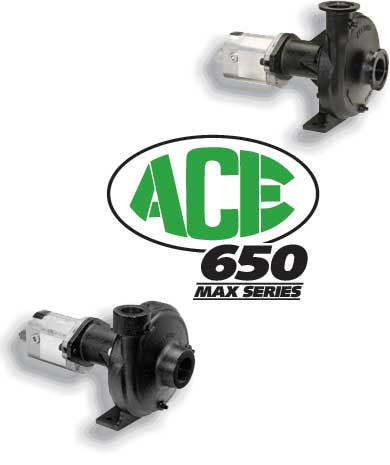

High Pressure Centrifugal Pumps

FMC-650 and FMC-650F Series

Finally, a new pump designed for today’s demanding sprayer market. The 650  pump is ideal for high pressure applications including:fungicides, insecticides, air induction nozzles and improved canopy penetration.Capabilities include a maximum pressure of 160 psi and a maximum flow of 140 gpm (170 gpm for F model) at up to 120 psi.MAXimum life is assured with lower rpm, a 4000 psi high efficiency motor and oversized bearings.A durable e-coat finish protects the castings inside and out for excellent chemical and corrosion resistance.The F version is equipped with industry standard flanges for improved performance, easy installation, and easy service. Take your sprayer to the MAX by simply changing the pump.

Click here to download product information. (470kb PDF)

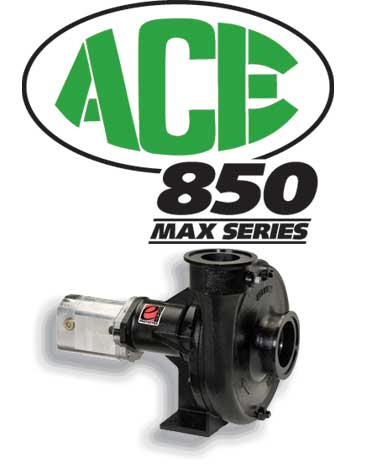

High Performance Pump with Oasis™ Wet Seal

FMC-850F-HYD

The 850 MAX Series pump was designed from the ground up for today’s demanding self-propelled sprayers.  A maximum pressure of 150 psi and a maximum flow of 325 gpm are more than enough to satisfy the largest sprayers.  The unparalleled reliability of the 850 is by far the most important feature of the pump preventing costly downtime during critical application periods.  The Oasis™ Wet Seal design extends seal life by preventing run dry and abrasive seal failures.  The 4000 psi high efficiency hydraulic motor with integrated seal case drain ensures long and reliable motor life.  A durable e-coat finish protects the castings inside and out for excellent chemical and corrosion resistance.  The ultimate in reliability and performance!

Click here to download product information. (350kb PDF)
